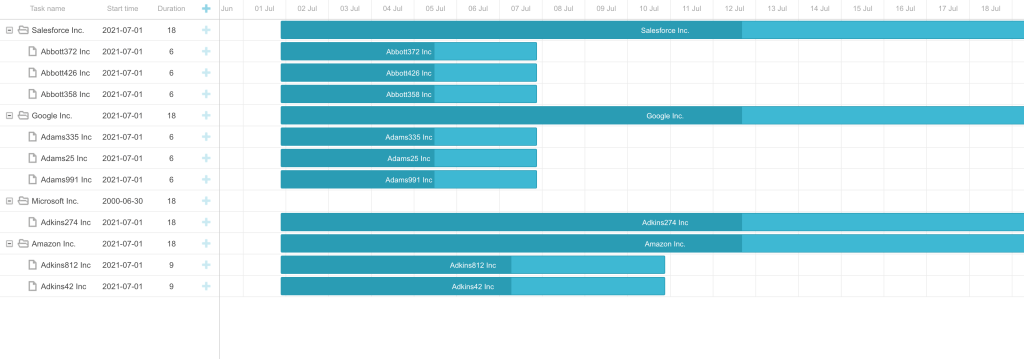

Display Parent and its children using Gantt Chart

This page shows an example on how to use Gantt chart to show a parent and its children. I used Account object for it, but the below code will work for any standard custom object as long as there is a ParentId field.

Apex Controller:

public with sharing class GanttChartHierarchy {
    public List<SObject> sobjectRecordsList {get; set;}
    public String sobjSerializeString {get; set;}
    public GanttChartHierarchy() {
        AggregateResult[] parentWithChildren = [SELECT COUNT(Id) countChildren, ParentId FROM Account GROUP BY ParentId];
        Set<Id> parentIdsSet = new Set<Id>();
        for (AggregateResult agResult : parentWithChildren) {
            if( agResult.get('ParentId') != null ) {
                parentIdsSet.add( (Id)agResult.get('ParentId') );
            }
        }
        sobjectRecordsList = [SELECT Id, Name, start_date__c, end_date__c, ParentId, (SELECT Id, Name FROM ChildAccounts) FROM Account WHERE Id IN: parentIdsSet];
        sobjSerializeString = JSON.serialize(sobjectRecordsList);
    }
}

Visualforce Page:

<apex:page controller="GanttChartHierarchy" standardStylesheets="false" showHeader="false">
    <head>
        <apex:stylesheet value="{!URLFOR($Resource.Timeline, 'gantt/codebase/dhtmlxgantt.css')}"/>
        <apex:includeScript value="{!URLFOR($Resource.Timeline, 'gantt/codebase/dhtmlxgantt.js')}"/>
        <style type="text/css" media="screen">
            html, body { margin:0px; padding:0px; height:100%; overflow:hidden; }
        </style>
    </head>
    <body>
        <div id="gantt_here" style='width:100%; height:100%;'></div>
        <script type="text/javascript">
            let ganttDataArr = [];
        	let sobjResultJSON = {!sobjSerializeString}; // store the apex variable that we serialized.

        	// iterate over all accounts that are returned by apex
        	for (let key of Object.keys(sobjResultJSON)) {
                let ganttDataObj = {};
                ganttDataObj["id"] = sobjResultJSON[key]["Id"];
                ganttDataObj["text"] = sobjResultJSON[key]["Name"];
                if (sobjResultJSON[key]["Start_Date__c"] != null) {
                    ganttDataObj["start_date"] = new Date(sobjResultJSON[key]["Start_Date__c"]);
                } else {
                    ganttDataObj["start_date"] = new Date();
                }
                ganttDataObj["duration"] = 18;
                ganttDataObj["progress"] = "0.6";
                ganttDataObj["open"] = true;

				if( sobjResultJSON[key]["ChildAccounts"].totalSize > 0 ) {
                    for (let childKey = 0; childKey < sobjResultJSON[key]["ChildAccounts"].totalSize; childKey++) {
                        let ganttChildDataObj = {};
                        ganttChildDataObj["id"] = sobjResultJSON[key]["ChildAccounts"]["records"][childKey]["Id"];
                        ganttChildDataObj["text"] = sobjResultJSON[key]["ChildAccounts"]["records"][childKey]["Name"];
                        if (sobjResultJSON[key]["ChildAccounts"]["records"][childKey]["Start_Date__c"] != null) {
                            ganttChildDataObj["start_date"] = new Date(sobjResultJSON[key]["ChildAccounts"]["records"][childKey]["Start_Date__c"]);
                        } else {
                            ganttChildDataObj["start_date"] = new Date();
                        }
                        ganttChildDataObj["duration"] = 18/sobjResultJSON[key]["ChildAccounts"].totalSize;
                        ganttChildDataObj["order"] = '10';
                        ganttChildDataObj["progress"] = "0.6";
                        ganttChildDataObj["parent"] = sobjResultJSON[key]["Id"];
                        ganttDataArr.push(ganttChildDataObj);
                    }
                }

                ganttDataArr.push(ganttDataObj);
            }

            let tasks =  {
                data: ganttDataArr,
                links:[
                    { id:1, source:1, target:2, type:"1"},
                    { id:2, source:2, target:3, type:"0"},
                    { id:3, source:3, target:4, type:"0"},
                    { id:4, source:2, target:5, type:"2"},
                ]
			};

			gantt.init("gantt_here");
			gantt.parse(tasks);

		</script>
    </body>
</apex:page>
